The newly designed A3 DTF printer is equipped with the popular EPSON head-XP600 head. A DTF printer with super high cost-effective and low trial cost for business beginners.
Printhead: XP600
Printing Speed: 1.2sqm/h
Printing Width: 330mm
Color: C, M, Y, K, W
Printing software: USB 2.0
Product Specification

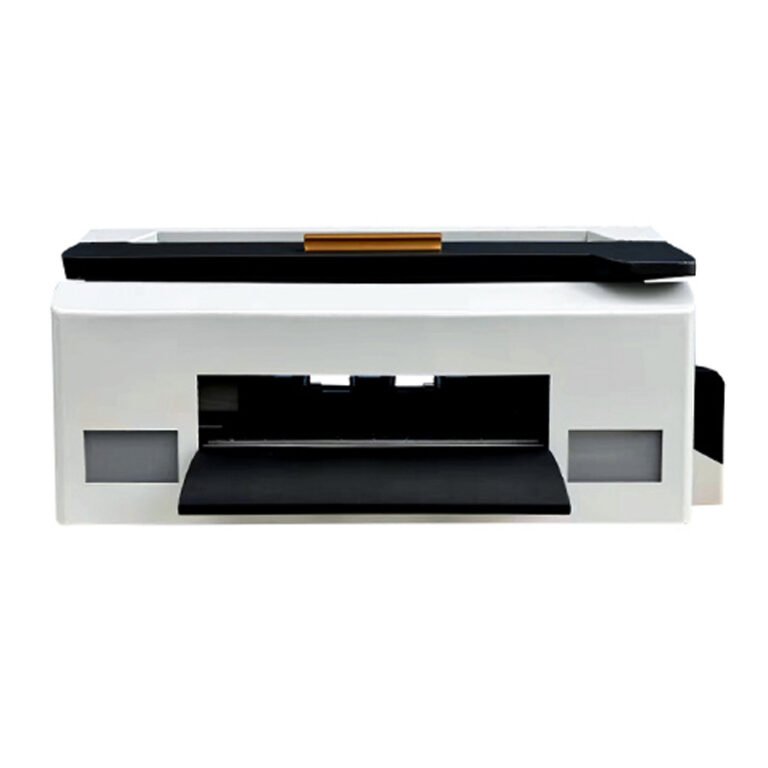

Product | A3 DTF printer |
Model | SINO-A30 |
Printhead | XP600 |
Printing Speed | 1.2㎡/h |
Printing precision | 8 Pass, 720*1440dpi |
Printing Width | 330mm |
Color | C, M, Y, K, W |
Ink Type | Textile printing ink |
Printing software | Riin10.5, photoprint, maintop |
Print Interface | USB 2.0 |
Operation System | Win10, Win11 |

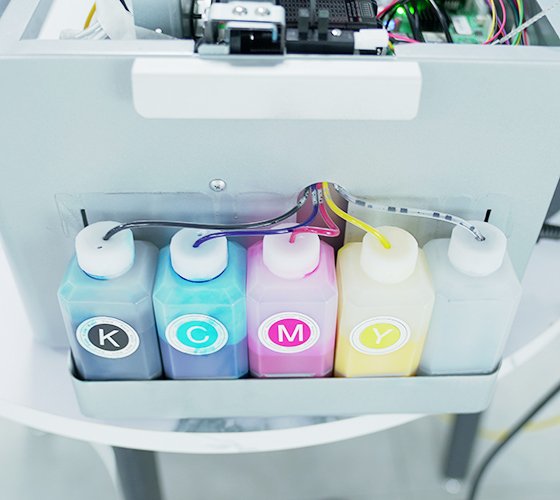

Ink Supply System | Color ink siphon ink supply, white ink intelligent cycle |
Media Type | PET film |
Capping & Moisturizing | Auto capping system & moisturizing system |
Power | 200W |
Operating Environment | 15-35℃ |
Package Dimension | 790*450*460mm (39kgs) |
Product | A3 powder shaker |
Media Width | 0-380mm |
Functions | Temperature control, independent control of powder shaking switch, powder spreading motor with gravity sensor |

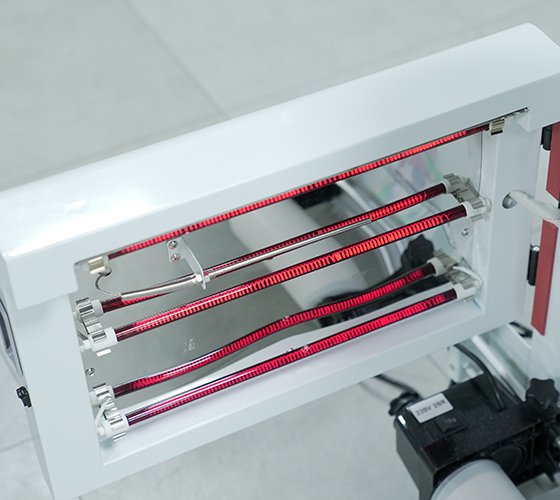

Heating Function | Infrared carbon fiber heating tube |
Drying Tunnel Length | 400mm |
Take-Up System | Automatic induction take-up |
Voltage | 110V/220V |
Power | 1.5 KW |
Machine Dimension | 570*630*630mm(26kgs) |
Package Dimension | 510*610*680mm(40kgs) |
Powder shaker is optional |
Product Main Features
Continuous and stable automatic ink supply system, through the continuous circulation of ink, it prevents nozzle clogging and improves printing efficiency.

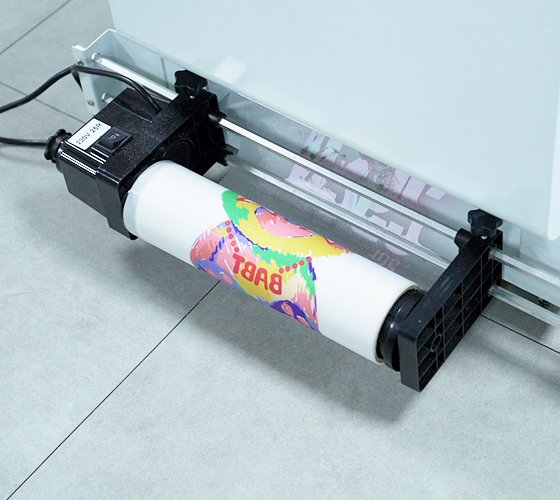

When printing is completed, it can be automatically rolled up to reduce manual output.

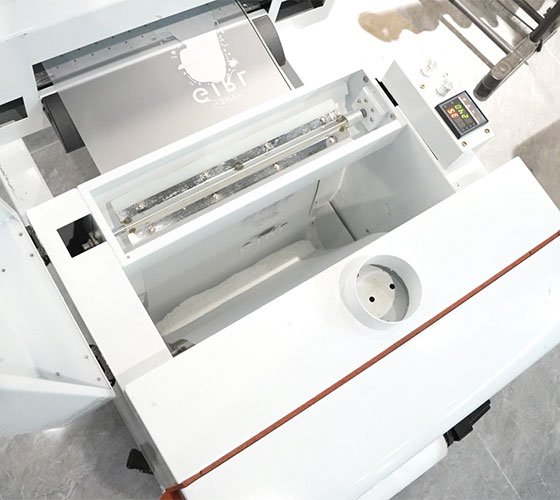

It can automatically shake powder during the printing process without manual operation, which is more labor-saving and convenient.
The machine has a built-in heating wire that provides stable and uniform heating temperature, allowing the powder to dry quickly.
Product Advantages
Intelligent and efficient heating, fast temperature rise, even heating, and hot melt powder solidifies instantly. Improve printing efficiency and stability.
The machine occupies a small area and has an A3 printing width, enabling continuous printing for 24 hours.

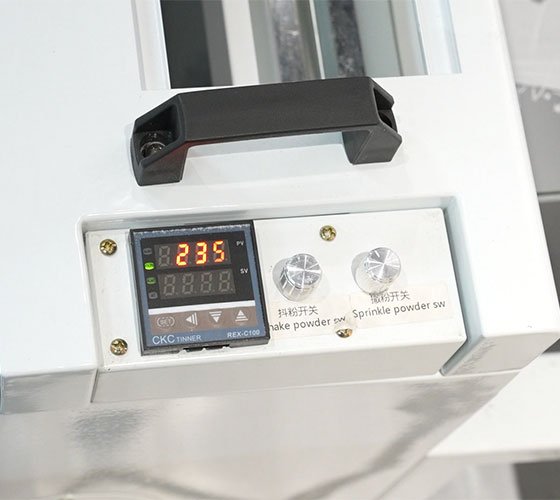

Intuitive working temperature display, freely adjust the speed of powder and shaking powder, and better control the printing effect.
DTF ink is highly environmentally friendly, green and pollution-free, and does no harm to the human body or the environment.
