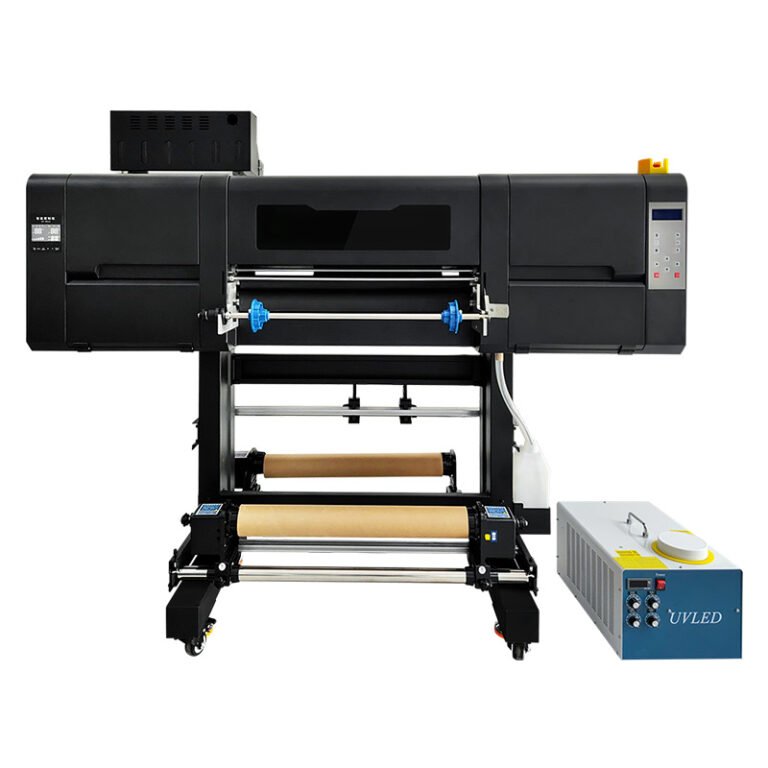

The new generation of KingJet 60cm UV DTF printer realizes fully automatic integrated lamination, perfectly reproduces rich patterns, and can be transferred to various irregular objects.
Printhead: 3pcs or 4pcs*EPSON I3200U1
Printing Speed : 4 sqm/h
Max Print Width: 600mm
Color: CMYK+W+V
RIP Software : maintop, photoprint
Product Specification
Product | UV DTF printer |
Model | SINO-604UV |
Printhead | 3pcs or 4pcs * EPSON I3200U1 |
Speed Mode | 4 sqm/h |
Quality Mode | 2 sqm/h |
Color | CMYK+W+V |
Inking System | UV ink |
Ink Supply System | White ink stirring |
Max Print Width | 600mm |
Media Type | UV DTF AB film |
Lamination Way | Integrated film rolling, tearing and laminating system (all-in-one) |
Drying System | UV LED curing system |
Capping & Moisturizing | Auto capping system & moisturizing system |
RIP Software | Maintop, photoprint (optional) |
Operation Environment | Temperature: 18-32℃ , humidity : 46-65% |
Machine Size | Printer: 1900*850*1420mm, 240kg |
Water tank(220V): 360*300*220mm, 10.5kg | |
Water tank(110V): 420*355*220mm, 11.5kg | |
Packing Size | Printer: 2440*1000*860mm, 275kg, 2.100cbm |
Water tank(220V): 450*390*350mm, 12kg | |
Water tank(110V): 530*430*440mm, 13kg |
Product Main Features
Ensure the continuous supply of ink and continuous circulation to avoid precipitation and reduce clogging of the nozzle.
Automatic cleaning and long-lasting moisturizing functions ensure that the nozzle is not clogged and improves printing quality.
No manual operation is required, improving production efficiency and operational convenience.
Effectively control the size and jetting mode of ink droplets with high precision and fast speed.
Product Advantages
The Elevating aluminum capping system protects the nozzle and prevents clogging caused by ink condensation on the nozzle surface.
Professional color management software “Maintop, Photoprint” can easily change patterns and is simple to operate.
Fully automatic integrated lamination reduces manual operations, making the entire printing process more efficient and convenient.
Providing sustainable printing solutions while focusing on reducing environmental impact, and can print children’s clothing.
